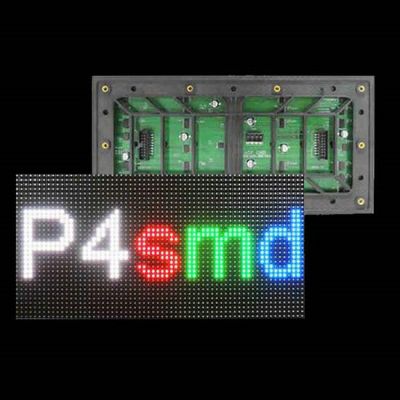

P4 Outdoor RGB SMD LED Display Module 256*128mm 64*32pixels 1/8 scan
Product Specification
Module: P4 outdoor RGB SMD LED module.
Pixel Pitch: 4 mm.
Pixel Type: Real pixel.
Pixel Configuration: SMD LED 1R1G1B.
Module Size: 256x128 mm.
Model Pixel: 64x32 pixels.
Pixel Density: 62500 dots/square meter.
Working Voltage: 5V DC.
Lifetime: >=100000 hours.
Best Viewing Distance: 4m~30m.
Max Power Consumption: 1200W/square meter.
Ave Power Consumption: 400W/square meter.
Drive Mode (Optional): Constant current 1/8 scan.
Weather Protection: IP65.
Working Environment Temperature: -20°C~60°C.
Outdoor LED Display Function
1. Excellent visual effect, better viewing effect for text and graphic or video.
2. Large viewing angle, getting vivid effect within any position of the viewing range.
3. High contrast ratio and good evenness, high uniformity, without mosaic.
4. Resist of the high temperature and anti-oxidation and anti-static.
5. Any led in each pixel can be replaced, which reduce the cost of the display maintenance.
6. Long life & MTBF.
Application
1. Outdoor P4 RGB SMD LED Video Screen;
2. Full color LED display.
3. P4 scrolling message LED sign.
4. P4 LED panel.
5. P4 LED message display.
