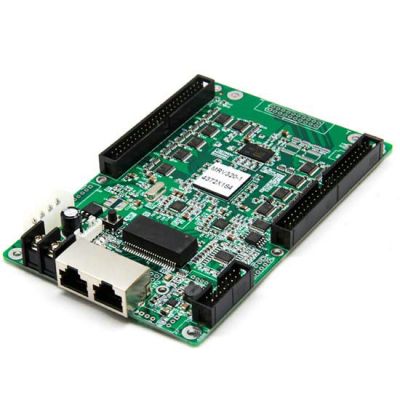

Novastar LED Display Receiving card MRV320
Feature:
Resolution :256 x 226
RGB Data Output :20 groups
Monitoring Card Applicable :Supported
Support Memory on Module :-
HUB75 Interface :-
Certification :RoHS、CE(Class A)
1) Single card outputs 16-group of RGBR data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) Single card support resolution 256x226;
5) Support configuration file readback;
6) Support temperature monitoring.
7) Support Ethernet cable communication status detection;
8) Support power supply voltage detection;
9) Support pixel by pixel brightness and chromaticity calibration. Brightnessand chromaticity calibration coefficients for each LED;
10) Support pre-store picture setting;
11) Support monitor card connection;
12) Comply with EU RoHs standard;
13) Comply with EU CE-EMC standard.
