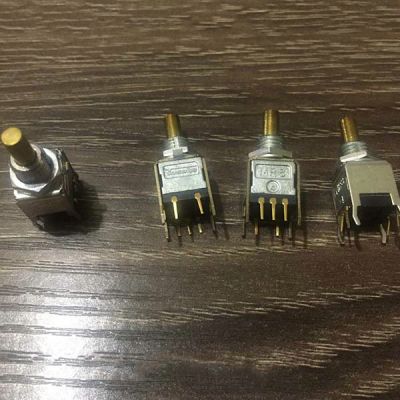

MR8 MR8A MR8C Rotary band switch TOSOKU Electronic hand wheel dedicated

The MR8C switch is a total of 5 pins  (2 kinds !!)
MR8C  5 pins   12 grade (12 positions the switch can be turned 11 times )
MR8C  5 pins   16 grade (16 positions the switch can be turned 15 times )

The MR8A switch is a total of 13 pins
MR8A 13 pins  12 grade

Professional used in Japan East TOSOKU electronic hand wheel HC-115, HC-121, HC-115-03 type, HC11D-03 type, HC-121-03 series

Model: MR8A MR8C

There are 13 pins and 5 pins,

Brand: Japan East measured Tosoku

Applicable scope: It is designed to be used in the Japanese original TOSOKU electronic hand wheel HC-115 and HC-121 series. (Mainly used for OFF X Y Z axis selection and x1 x10 x100 magnification selection switch)

Model: MR8A series

Origin: Japan

Ultra - small - shaped corresponding band switch


feature:

1. Gold-plated double-contact stability of contacts, to ensure reliability

2. Ultra-miniaturization: 8.0 * 8.0 [mm] height of 8.5mm

One kind of rotation angle: 30 °

3. Standard and ultra-small band switching knob to use

Circuit board for ultra-small band switch

4. The corresponding band switch can be used directly in the control loop

The setting is simple and the setting screw position can be changed to adjust the setting status

5.4 digital methods: binary code (Gray code), etc. [to prevent the error signal]

6. Sealed manufacturing: integrated structure with dust, water, oil features, optional reinforcement plate reinforcement.
