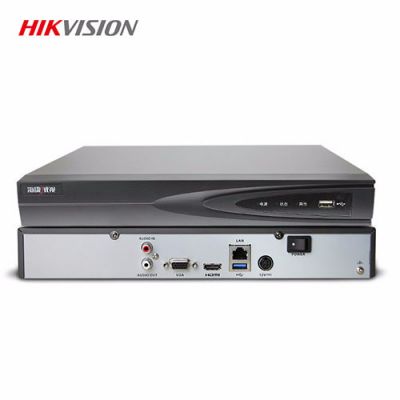

Hikvision NVR DS-7832N-K2 4K H.265 32CH Security Network Video Recorder
DS-7832N-K2(H.265)Mutil-Language include English and Russian ,etc
• Third-party network cameras supported
• Up to 6 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)
resolution
• 32-ch network cameras can be connected with
160M incoming bandwidth
• Support dual-os to ensure high reliablility of system
running
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
Video/Audio Input |
||
IP video input: |
| |
32-ch |
Two-way audio input: |
| |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
Network |
||
Incoming bandwidth: |
| |
160Mbps |
Outgoing bandwidth: |
| |
160Mbps |
Remote connection: |
| |
128 |
Video/Audio Output |
||
HDMI Output: |
| |
1- ch, resolution: 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Recording Resolution: |
| |
6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Audio Output: |
| |
1-ch, RCA (Linear, 1kΩ) |
Synchronous Playback: |
| |
32-ch |
VGA Output: |
| |
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding |
||
Live view / Playback: |
| |
6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability: |
| |
8-ch@1080P |
Hard Disk |
||
SATA: |
| |
2 SATA interfaces for 2 HDDs |
Capacity: |
| |
Up to 6TB capacity for each HDD |
External Interface |
||
Network Interface: |
| |
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
USB Interface: |
| |
Front panel: 1 × USB 2.0 |
Alarm In: |
| |
4-ch |
Alarm Out: |
| |
1-ch |
General |
||
Power Supply: |
| |
100 to 240VAC |
Consumption(without hard disk and POE): |
| |
≤ 15 W |
Working Temperature: |
| |
-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
Working Humidity: |
| |
10 % ~ 90 % |
Chassis: |
| |
385 mm chassis |
Dimensions: |
| |
385 × 315× 52 mm (15.2" 12.4" 2.0") |
Weight(without HDD): |
| |
≤ 3 kg (6.6 lb) |
1 PCS Hikvision NVR DS-7832N-K2(not inlcude HDD)
