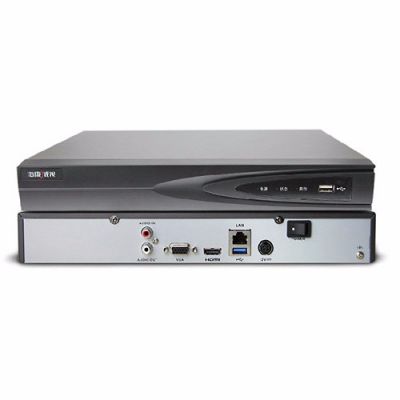

Hikvision DS-7804N-K1 Network Video Recorder Support Ezviz 4CH 4K H265 1SATA no Poe
DS-7804N-K1(H.265)Mutil-Language include English and Russian ,etc
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)
resolution
• 4-ch network cameras can be connected with
40M incoming bandwidth
• Support dual-os to ensure high reliablility of system
running
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
Video/Audio Input |
||
IP video input: |
| |
4-ch |
Two-way audio input: |
| |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
Network |
||
Incoming bandwidth: |
| |
40Mbps |
Outgoing bandwidth: |
| |
80Mbps |
Video/Audio Output |
||
HDMI Output: |
| |
1- ch, resolution: 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Recording Resolution: |
| |
5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Audio Output: |
| |
1-ch, RCA (Linear, 1kΩ) |
VGA Output: |
| |
1- ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding |
||
Live view / Playback: |
| |
5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability: |
| |
4-ch@1080P |
Hard Disk |
||
SATA: |
| |
1 SATA interface for 1 HDD |
Capacity: |
| |
Up to 6TB capacity for each HDD |
External Interface |
||
Network Interface: |
| |
1 RJ-45 10 / 100 Mbps selfadaptive |
USB Interface: |
| |
2, USB2.0 |
General |
||
Power Supply: |
| |
12 VDC |
Consumption(without hard disk and POE): |
| |
≤ 10 W |
Working Temperature: |
| |
-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
Working Humidity: |
| |
10 % ~ 90 % |
Chassis: |
| |
1U chassis |
Dimensions: |
| |
260 × 225 × 48 mm (10.2" 8.9" 1.9") |
Weight(without HDD): |
| |
≤ 1 kg (2.2 lb) |
1 PCS Hikvision NVR DS-7804N-K1(not include HDD)
