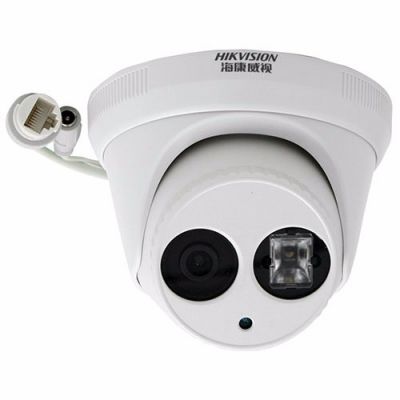

HIKVISION DS-2CD3345-I 1080P Full HD 4MP POE IPC ONVIF IP CCTV Camera H.265
Model:DS-2CD3345-I
l Up to 4 megapixel high resolution
l Full HD1080p video
l Dual stream
l 2.8mm/4mm/6mm fixed lens
l 120dB Wide Dynamic Range
l 3D Digital Noise Reduction
l Backlight Compensation
l DC12V & PoE
l Support H.264 H.265
l High performance EXIR LED
l Up to 30m IR range
l IP67 weather-proof protection
l 3-axis adjustment
l Mobile Monitoring via cloud P2P or iVMS-4500
Camera | ||
---|---|---|
Image Sensor: | | | 1/3" Progressive Scan CMOS |
Min. Illumination: | | | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter time: | | | 1/3 s to 1/100,000 s |
Lens: | | | 2.8mm, 4mm, 6mm @ F2.0, angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm) |
Lens Mount: | | | M12 |
Adjustment Range: | | | Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
Day& Night: | | | IR cut filter with auto switch |
Wide Dynamic Range: | | | 120 dB |
Digital noise reduction: | | | 3D DNR |
Compression Standard | ||
Video Compression: | | | H.264/MJPEG/H.264+ |
H.264 code profile: | | | Main Profile |
Video bit rate: | | | 32Kbps~16Mbps |
Dual Stream: | | | Yes |
Image | ||
Max. Image Resolution: | | | 2688 × 1520 |
Rate: | | |
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
BLC: | | | Yes, zone configurable |
ROI: | | | Support |
Network | ||
Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function: | | | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering |
System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | ||
Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
General | ||
Operating Conditions: | | |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
Power Supply: | | | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption: | | | Max. 5.5W (Max. 7.5W with ICR on) |
Weather Proof: | | | IP67 |
IR Range: | | | Up to 30m |
Dimensions: | | | Φ127×97.5 (5.0” × 3.8”) |
Weight: | | | 670g (1.5 lbs) |
