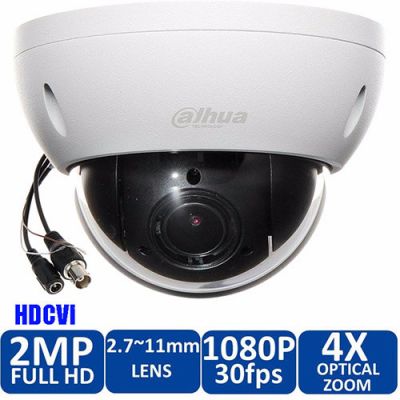

Camera                       DH-SD22204I-GC

Image Sensor

1/2.7” CMOS

Effective Pixels

1944(H) x 1092(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/3s~1/300,000s

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

S/N Ratio

More than 55dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Focal Length

2.7mm~11mm

Max. Aperture

N/A

Angle of View

H: 112.5° ~ 30°

Optical Zoom

4x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 355°; Tilt: 0° ~ 90°

Manual Control Speed

Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan: 100° /s; Tilt: 60° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after

power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no

command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Resolution

1080P(1920×1080)/720P(1280×720)

Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1- channel BNC HDCVI high definition video

2- output/ CVBS standard definition video output (switchable)

Day/Night

Auto(ICR) / Color / B/W

OSD Menu

Support

Backlight Compensation

BLC / HLC / WDR(120dB)

White Balance

Auto,ATW,Indoor,Outdoor,Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

1

Audio Interface

N/A

RS485

1

Alarm

N/A

Electrical

Power Supply

DC 12V/1.5A

Power Consumption

10W

Environmental

Operating Conditions

-30ºC ~ 60ºC (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection

IP66

Vandal Resistance

IK10

Construction

Casing

l

Dimensions

Φ122 (mm) x 89 (mm)

Net Weight

0.6kg(1.32lb)

Gross Weight

0.65kg(1.43lb)
