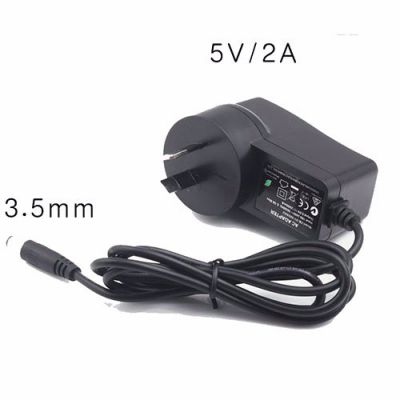

DC5V2A 3.5MM AU standar AC adapter

Parameter:

Input voltage: 110V-240V

Input current: 0.1A

output voltage: 5V

output current: 2000mA
operating frequency: 50-60HZ

Materials:Advanced ABS flame retardant

Feature:

Lightning: 5V2A power adapter at ± 1KV, the product is not damaged
   ● Protection: 5V2A monitoring power supply with over-current, over voltage, short circuit, over-temperature protection circuit
   ● ESD: 5V2A power adapter contact discharge ± 4KV, air discharge ± 8KV, the product is not damaged
   ● aging: the rated input and rated load current test product 4 hours, the product is not damaged
   ● Insulation resistance: input DC500V between 5V input and DC output of 5V2A power adapter Insulation resistance greater than 50MΩ
   ● Temperature rise: rated surface with rated input and rated load surface temperature, 5V2A source adapter housing surface temperature rise to meet safety standards
   ● wire swing test: wire tensile load 200g, bending ± 60 °, 10 times / min, 1000 times, after the test wire without damage
   ● drop test: monitor the power adapter 2a security from 1 meter drop, fell on the board, each side of a product, no mechanical damage, no electrical performance damage

Application:

Monitor the power adapter 2a security for LED display, LED lights, mobile hard disk, USB HUB, ADSL, DVD / VCD, audio, video machines, security monitoring, routers, health massage products, motor communications equipment, medical equipment, electronic Flow with the pressure products
