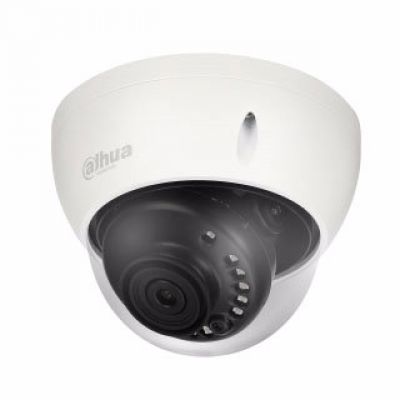

DAHUA DH-HAC-HDBW1200RP-VF HDCVI 1080P Dome Camera 1/2.7"2MPl IR 30M IP67 English Version
>1/2.7" 2Megapixel CMOS
> 25/30fps@1080P
> High speed, long distance real-time transmission
> Day/Night(ICR), AWB, AGC, BLC, 2DNR
> 2.7~12mm vari-focal lens
> Max. IR LEDs length 30m, Smart IR
> IP67, IK10, DC12V
|
Model |
DH-HAC-HDBW1200RP-VF |
|
|
Camera |
||
|
Image Sensor |
1/2.7" 2Megapixel CMOS |
|
|
Effective Pixels |
1930(H)×1088(V) |
|
|
Electronic Shutter |
1/50s~1/100,000s |
|
|
Video Rate |
25fps@1080P |
|
|
Synchronization |
Internal |
|
|
Min. Illumination |
0.02Lux/F1.4, 0Lux IR on |
|
|
Video Output |
1-channel BNC HDCVI high definition video output |
|
|
Camera Features |
||
|
Max. IR LEDs Length |
30m, Smart IR |
|
|
Day/Night |
Auto(ICR) / Color / B/W |
|
|
Noise Reduction |
2D |
|
|
Lens |
||
|
Focal Length |
2.7~12mm |
|
|
Angle of View |
H: 99º~37º |
|
|
Lens Type |
Manual / Fixed Iris |
|
|
Mount Type |
Φ14 |
|
|
General |
||
|
Power Supply |
DC12V±20% |
|
|
Power Consumption |
Max 5.8W |
|
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
|
Ingress Protection |
IP67 & IK10 |
|
|
Dimensions |
Φ122mm×89mm |
|
|
Weight |
0.45kg |
|
|
Material |
l |
|
Parcel include:
1 PCS DH-HAC-HDBW1200RP-VF English version
