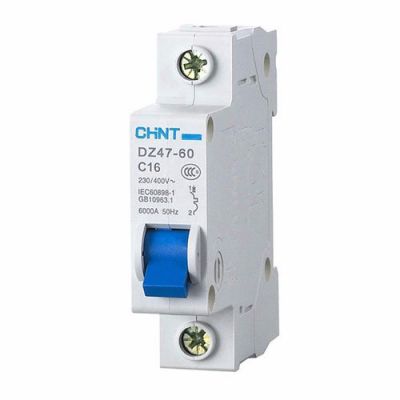

CHINT DZ47-60 C 1P Circuit Breaker
CHINT DZ47-60 C 1P Household miniature Circuit Breaker with over current and Leakage protection air switch
Price: $4 Discount Price: $3
Stock in:China
  • Shipping methods
  • Fist 0.5kg cost (≤0.5kg)
  • Add every 0.5kg cost
  • Product Details

    CHINT DZ47-60 C 1P Household miniature Circuit Breaker with over current and Leakage protection air switch


    Deion:
    Certificates:CE,DNV,KEMA,ESC,UKRSEPRO,GOST,RCC;IEC/EN 60947-2
    Operation conditions
    Temperature:-5 degree c-+40 degree c; the average value within 24h shall not exceed +35 degree c;
    for the circuit breaker with themo-magnetic relaese,+40 degree c is set to be the standard temperature for ratings,special utilization.
    ♦Altitude:2000m
    ♦Applicable wires : 2.5 sq mm
    ♦Rated Current 10A/16A/20A/32A/40A
    ♦Rated Voltage AC230/400V

    ♦Number of Poles 1


    DZ47-60 miniature circuit breaker, only available for sales in Commonwealth of Independent States, is mainly used in the circuit of AC 50Hz/60Hz, rated voltage of 400V and below, rated current of 60A and below, to act overload, short-circuit protection. It can also turn on or off the electrical appliance and lighting circuit infrequently under normal conditions, but not applicable for direct protection of high sensibility and high capacitive load of motor and electric equipment, capacitor cabinets, etc.


    Standard: IEC 60898-1.


    l7 chint circuit breaker Normal working conditions:

    environmental temperature: 5 C ~ + 40 C; The average no more than 35 C within 24 h.

    Height: installation location altitude does not exceed 2000 m.


    l7 chint circuit breaker the main parameters and technical performance:


    according to the rated current In points: 1A, 2A, 3A, 4A, 5A, 6A, 10A, 15A, 16A, 20A, 32A, 40A, 50A, 60A.


    the number:

    A. unipolar;

    B. diode;

    C. three pole;

    D. quadrupole.


    according to instantaneous tripping circuit breaker type points:

    A.C type (5 ~ 10 in);

    B.D type (10 ~ 16 in);


    mechanical and electrical life:

    Home Garyical life: not less than 4000 times;

    Mechanical life: not less than 10000 times.


    l7 chint circuit breaker DZ47-60(C) Type

    Rated current(A)

    number

    Voltage (V)

    On-off capacity (A)

    C1-C40

    1

    230/400

    6000

    C1-C40

    2,3,4

    400

    6000

    C50-C60

    1

    230/400

    4000

    C50-C60

    2,3,4

    400

    4000


    l7 chint circuit breaker DZ47-60(D) Type

    Rated current(A)

    number

    Voltage (V)

    On-off capacity (A)

    D1-D60

    1

    230/400

    4000

    D1-D60

    2,3,4

    400

    4000


    Connection: for 25 mm below the wire connection, 2.0 N · m torque.

    Rated current(A)

    Copper wires nominal cross-sectional area (mm)

    1-6

    1

    10

    1.5

    16,20

    2.5

    25

    4

    32

    6

    40,50

    10

    60

    16
