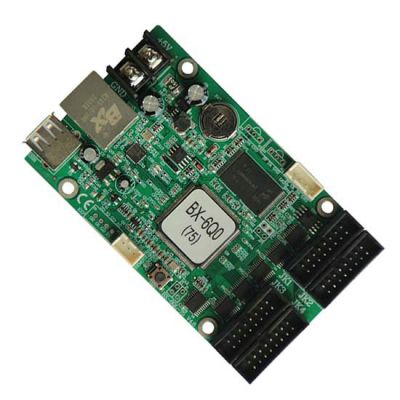

Onbon BX-6Q0
BX-6Q0 Network and USB Ports BX Asynchronous lintel full color LED Disply controller Card
Price: $45 Discount Price: $32
Stock in:China
  • Shipping methods
  • Fist 0.5kg cost (≤0.5kg)
  • Add every 0.5kg cost
  • Quantity:
      Total weight: 0.125kg
    Product Details

    BX-6Q0 Network and USB Ports BX Asynchronous lintel full color LED Disply controller Card


    Technical parameters

    product status

    Launched into market in Sep 2017

    Control size

    Total pixel≤32K 512*64256*128128*256 W≤512



    Gray level

    64 grade

    Software function

    Software function

    Groups cluster management/multi-program editing/

    multi-area display/multi-language version

    Program quantity

    Support 512 programs

    Area quantity

    Each program maximum support 16 areas

    Area type

    Weather/Image&text//sub/animation /lunar/

    time/dial/timer/sensor areas


    Program shine border /Area shine border


    Colorful background


    Stereo/gradient/dazzle sub


    Lunar /Dial/ Chinese and English clock/timer (all support multi-groups)

    Module compatibility


    Support all kinds of single/dual tri color modules

    Column driver IC

    Support 74HC595,common  constant current chip,

    double latch chip and other mainstream LED drive chip

    Not support all PWM chip
    Not support the SM16188 chip

    Row decoding IC

    support row decoding/none decoding module,

    support all kinds of row decoding IC

    Scan mode

    Support smart scan,

    upport any kinds of scan mode from static to 1/32

    Module empty spot

    Support any empty spot



    4 nos of 75 port


    100M network +USB


    IR  and brightness sensor socket on board

    Important function


    Support select program/lock screen/

    brightness adjustment/power on & off/screen test

    Brightness adjust

    16 grade brightness, support manual /timing/auto adjust mode

    Remote switch

    Support auto timing switch,software/remote switch

    Weather report

    Support China & overseas weather report

    Program group sending

    Support program self-adaption

    Parameters fast match

    support save and read-back the screen parameters

    Any layout

    Support arbitrary typesetting rules in Mongolian,

    Hebrew, Arabic, etc, easy to make vertical font

    System update and maintenance

    Platform update

    iLEDCloud and iLEDSys update online

    Firmware update

    Support firmware update online,cost efficient ,reduce the project risk

    Secondary development


    Support static area secondary development ,supply the c#

    java VBC++  development tools

    Electricity parameters

    Working voltage

    5V3.5V6V wide working voltage

    Max power


    Working temperature


    Terminal management and auto control

    Network communication

    Support LAN and internet

    Program update

    Support USB ,support 100M network program sending

    Display control

    Support timing display

    manage device

    PC,Android (IOS can’t support now)

    Remote control

    Auto adjust brightness ,auto switch screen ,system parameters setup,program display control ,update program sending

    Auto adjust brightness

    Support auto adjust the brightness according to different time or ambient brightness

    Timing switch

    Setup by management system


    LedshowTWPC software
