CL A-200AF-5

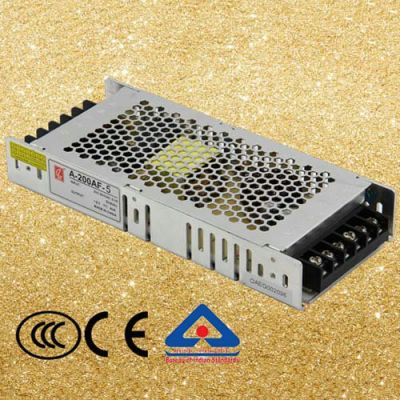

A-200AF-5 CL LED Diplay power Supply Output 5V40A200W Input 220v
Price: $19 Discount Price: $14.5
Stock in:China
  • Shipping methods
  • Fist 0.5kg cost (≤0.5kg)
  • Add every 0.5kg cost
  • Quantity:
      Total weight: 0.5kg
    Product Details

    A-200AF-5 CL LED Diplay power Supply Output 5V40A200W Input 220V



    Features:

    Low profile,thinner and  less weight

    High reliability,strong load capability

    Protections:Overload/Short circuit

    100% pass full load high temp aging test

    1 year warranty

    Size: 190×82×30mm

    AC Input Voltage Range/Input Frequency....................................................................................200~240VAC/47~63Hz

    AC Inrush Current.............................................................................................................................cold start,60A/230VAC

    Line Regulation(full load).................... ...........................................................................................±1%

    Output Overload Protection.....................................................................................110%-150%Hiccup mode,auto-recover

    Rise,Hold up time..............................................................................................................................50mS, 20mS(at full load)

    Withstand Voltage.................................................................................I/P-O/P:3KVAC,I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min

    Working temperature...................................................................................-30℃~+60℃(refer to temperature derating curve)

    Storage Temperature.................................................................................. -40℃~+100℃,20~95%RH(non-condensing)

    Safety Standards.............................................................................................GB4943, UL60950-1, EN60950-1

    EMC Standards..................................................................................................................................GB9254, EN55022 class A

    Cooling Method..................................................................................................................................Free air cooling convection
