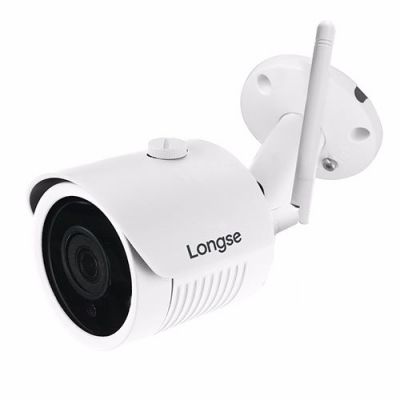

2MP Outdoor Fixed Bullet Wifi IP Camera 1/2.9" SONY CMOS Sensor HISILICON Hi3516C WDR With IR CUT
Feature:
LBH30S200W
2MP Outdoor Fixed Bullet Wifi IP Distance 300m Max.
• 1/2.9"SONY Low Illumination CMOS Sensor
• H.265/H.264 Compression Method
• 3.6mm Fixed Lens
• IR Distance 30m Max.
• IP66 Outdoor l Case
Camera |
|
Image Sensor |
1/2.9" SONY Low Illumination CMOS Sensor |
Resolution |
2MP 1080P |
Effective Pixels |
1985(H)*1105(V) |
Compression |
H.264/H.265/JPEG/AVI/MJPEG |
TV System |
PAL/NTSC |
Electronic Shutter Time |
Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
S/N Ratio |
≥52dB |
Scanning System |
Progressive |
Video Output |
Network |
Reset Button |
NO |
LENS Type |
|
Focus Length |
Board Lens 3.6mm/F2.0 |
Focus Control |
Fixed |
Lens Type |
Fixed |
Pixels |
3MP |
Night Vision |
|
Infrared LED |
42µx 2PCS |
Infrared Distance |
30M |
IR Status |
Under 10 Lux By CDS |
IR Power On |
CDS Auto Control |
Network |
|
Ethernet |
RJ-45 (10/100-T) |
Protocol |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
ONVIF |
Support ONVIF 2.4 |
P2P |
YES, Support QR Code |
POE |
Optional, Support IEEE 802.3af |
Video Delay |
0.3S (Within the Lan) |
Main Stream 1 |
1920*1080@25fps |
Main Stream 2 |
/ |
Main Stream 3 |
/ |
Sub Stream 1 |
720*480@25fps |
Sub Stream 2 |
/ |
Sub Stream 3 |
/ |
Tri Stream |
352*288@25fps |
IE Brower |
IE8-11, Google Chrome, Firefox, Safari, Mac Safari |
Smart Phone |
iPhone, iPad, Android, Android Pad |
Wireless |
|
Antena |
3dbi |
Hotspot |
YES |
Wi-Fi |
Wi-Fi(IEEE802.11b/g/n) |
WIFI Range |
No obstacles 300m Max. |
Camera |
|
Day/Night |
Color/ B&W (IR-CUT ) |
Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) |
Corridor Pattern |
/ |
ROI |
/ |
Defog Mode |
Support |
BLC |
Support |
HDR |
/ |
WDR |
Support |
Motion Detection |
Support |
Privacy Masking |
3 Rectangular Zone |
Recording Mode |
NVR/NAS/VMS/Web |
Language |
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands, Czech |
Interface |
|
Audio |
Optional Audio in(RCA interface) |
Alarm |
/ |
SD Card Slot |
/ |
RS485 |
/ |
General |
|
Housing |
l, IP66 |
Anti-cut Bracket |
Anti-Cut 3-Axis |
IR Cut Filter |
YES |
Operation Temperature |
-20℃ ~ +60℃ RH95% Max |
Storage Temperature |
-20℃ ~ +60℃ RH95% Max |
Power Source |
DC12V±10%, 900mA |
Dimension |
157(W) x 70(H) x 66(D)mm |
Weight |
650g |
