Onbon BX-Y04 BX-Y04

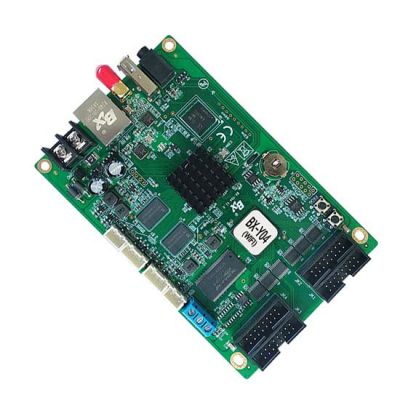

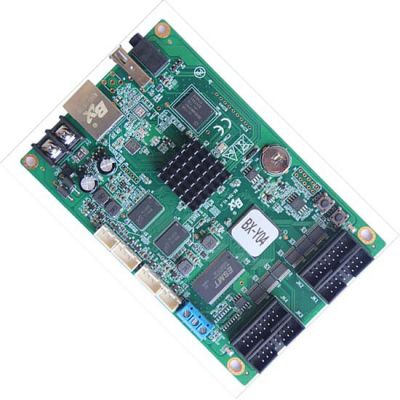

Onbon BX-Y04 BX-Y04 WIFI Dual Model full color LED Controller Player Card
Price: $75-$95 Discount Price: $59-$75
Stock in:China
  • Shipping methods
  • Fist 0.5kg cost (≤0.5kg)
  • Add every 0.5kg cost
  • Model:
    Quantity:
      Total weight: 0.25kg
    Product Details

    Onbon BX-Y04 BX-Y04 WIFI Dual Model full color LED Controller P Card

    Parameter:

    Technical parameters

    Status

    Launched into market in April 2018

    Control size

    Total pixel ≤64K:512*128;(W≤1024, H≤256)

    Hardware

    1GHz dual-core processor、512MB DRAM,1080P HD

    Storage

    Standard match with 4GByte FLASH,SD extend to 256GByte is optional


    Softaware function

    Software function

    Group sending/multi-program edit/multi-area display/

    multi-lanuage version

    Program type

    Common program/announcement

    Program quantity

    no limition,≥512 programs

    Area quantity

    Each program maximum support 32 areas

    Arey type

    Image&text//sub/video /lunar/ time/dial/timer/sensor areas/notification

    Clock

    Lunar /Dial/ Chinese and English clock/timer (all support multi-groups)


    Display effect

    Area partition

    Supports area partition of any program position or quantity,

    support area and 256 grade transparent display effect

    OSD

    Support 32bit OSD,support video and text area overlay ,

    support 256 grade transparent display effect

    Moving smoothness

    Adjust program at any moving speed

    Preview

    preview program in real time

    Display effect

    More rich and colorful :supprt 3D function,colorful sub and background ,

    colorful and  granule border


    Display media

    Video format

    Support avi, wmv, mpg, rmvb, mov, vob, mp4, flv

    Audio format

    Support mp3, wav, wma, ogg, ape, acc

    Picture format

    Support bmp, jpg, png, gif

    Text format

    Support txt, rtf, word, excel etc.

    Module compatibility

    Module

    Support all kinds of full color  color modules

    Column driver IC

    Support 74HC595,SM16188,PWM,common  constant current chip,

    double latch chip and other mainstream LED drive chip

    Row decoding IC

    Support 74HC138 row decoding/none decoding module,

    and support other row decoding IC

    Scan mode

    Support smart scan,support any kinds of scan mode from static to 1/64

    Module empty spot

    Support any empty spot

    RGB signal

    Support RGB signaldefinition


    Interface

    Communiction

    Standard match with 100M ethernet port

    Output

    4 hub75 ports on board

    Audio

    1 AUDIO output

    Remote

    IR socket on board

    Sensors

    Brightness and temp&humidity sensor socket on board

    Relay

    Relay switch socket on board,support 2 nos of relay switch

    RS485

    RS485 socket on board ,support all kinds of
    Environmental monitoring sensors and other RS485 sensor connection

    USB

    Double USB socket ,support USB storage and display;support 4G module connection and communication

    SD

    SD card is optional ,can extend to 256 GByte


    Important functions

    Remote

    Support select program/volumn adjust/

    brightness adjustment/power on & off/screen test

    Sensor

    Support temperature/temp&huidity/brightness sensor and other
    environmental monitoring sensor connection

    Brightness adjust

    Support time share/software/remote adjust brightness,

    connect with brightness sensor ,support auto adjust brightness

    Remote switch

    Support auto timing switch,software switch

    Weather report

    Support China & overseas weather report

    Environmental monitoring

    Support wind speed,wind direction,air quality,noise ,atmosphere pressure, illumination and other environmental monitoring sensors

    Program group sending

    Support program self-adaption

    Background music

    Support background music

    Update info

    Support dynamic area

    Rotation

    Support screen rotation at any angle

    Area copy

    Support copy video area

    Monitoring

    Support real-time playback

    Parameters fast match

    Support save and read-back the screen parameters

    Any layout

    Support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, etc, easy to make vertical font


    System update and maintenance

    Platform update

    iLEDCloud and iLEDSys update online;
    Support firmware update online,cost efficient

    Firmware update

    Support firmware update online,cost efficient


    Secondary development

    SDK

    Support static area secondary development ,

    supply the c# 、java 、VB、C++  development tools;


    Electricity parameters

    Working voltage

    5V(4.5V~6V wide working voltage)

    Max power

    ≤10W

    Working temperature

    -40℃~80℃


    Terminal management and auto control

    Network communication

    Support LAN and internet

    Program update

    Support USB ,support 100M network /WIFI/4G program sending

    Display control

    Support timing display

    Manage device

    PC,Android (IOS can’t support now)

    Remote control


    Auto adjust brightness ,auto switch screen ,

    system parameters setup,program display control ,

    update program sending

    Auto adjust

    Support adjust the brightness or

    auto adjust brightness by the screen environmental brightness

    Timing switch

    Setup by management system

    Software

    LedshowYQ(PC software)、LedshowYQ( mobile phone APP)
    Cloud platform:iLEDCloud、 iLEDSys(enterprise version/setup separately)
