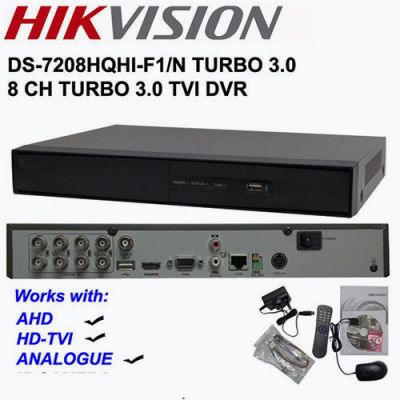

Hikvision TVI DVR English Version DS-7208HQHI-F1/N 8CH Turbo HD DVR 1080P CCTV Security dvr recorder 1SATA
• H.264 ,H.264+& Dual-stream video compression
• Support HD-TVI, AHD and analog cameras with
adaptive access
• Up to 3 MP resolution for recording of the first channel of DS-7204HQHI-F1/N, the first 2 channels of DS-7208HQHI-F1/N, and the first 4 channels of DS-7216HQHI-F1/N
• Support 1080P lite mode enabled to realize the real-time
1080P lite and 720P lite resolution
• Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7204/7208HQHI-F1/N and 4K (3840 × 2160) resolution for HDMI output of DS-7216HQHI-F1/N
• Long transmission distance over coax cable
• Up to 4/8-ch synchronous playback at 1080p resolution
• Playback at up to 256X speed.
Audio Input: |
1-ch |
Video Compression: |
H.264,H.264+ |
Analog and HD-TVI video input: |
8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types: |
Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
the first 2 channels of DS-7208HQHI-F1/N, and the first 4 channels of DS-7216HQHI-F1/N. |
IP Video Input: |
2-ch Up to 2MP resolution |
Video Input Interface: |
BNC (1.0 Vp-p, 75Ω) |
Audio Compression: |
G.711u |
Audio Input Interface: |
RCA (2.0 Vp-p, 1 kΩ) |
CVBS Output: |
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
HDMI/VGA Output: |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution: |
When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
Rate: |
Main stream: |
Video Bit Rate: |
32 Kbps-6 Mbps |
Stream Type: |
Video/Video&Audio |
Audio Output: |
1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate: |
64kbps |
Dual Stream: |
Support |
Playback Resolution: |
3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Synchronous Playback: |
8-ch |
Network management |
|
Remote connections: |
128 |
Network protocols: |
TCP/IP, PPPoE, DHCP,Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
Hard Disk Driver |
|
Interface Type: |
1 SATA Interface |
Capacity: |
Up to 6 TB capacity for each disk |
External Interface |
|
Network Interface: |
1; 10M / 100M self-adaptive Ethernet interface |
USB Interface: |
2 USB 2.0 Interfaces |
Serial Interface: |
1; standard RS-485 serial interface, half-duplex |
General |
|
Power Supply: |
12V DC |
Consumption: |
≤ 20W(without hard disks) |
Working Temperature: |
-10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
Working Humidity: |
10% ~ 90% |
Chassis: |
Standalone 1U chassis |
Dimensions: |
315 × 242 × 45 mm |
Weight: |
≤2 kg(4.4lb) |
1 PCS DS-7208HQHI-F1/N 8CH English version(not include HDD)
