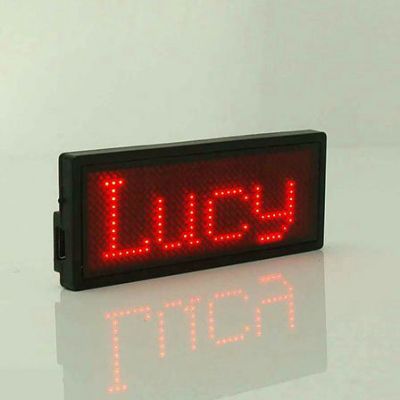

LED badge Usage

Taking on the upper clothes, t-shirts.

Good for ceremony and marketing event.

Model Number

(the other models)

B1236TSB / B1236TAY / B1236TAB/ B1236TAW / B1236TAPG(for Optional)

LED Chip Color

RED/Yellow/Blue/White/Green(for Optional)

Pitch (mm)

1.85

Pixels

12 x 36

Number of LED chip

per pixel

1 pcs

LED Type

bonding

Input method

USB Cable from PC / notebook

led badge Support Language

English / Chinese (Simple & Traditional) / Japanese / Spanish / German / French / Korean / Thailand / etc..

Max input letters (Western)

1,500 characters

Max input letters (Oriental)

750 characters

Max. number of letters

In one screen

Western : 4(text mode), 6 (graphic mode)

Oriental : 3 (text mode), 5 (graphic mode)

led badge Display Effects

4 (Scroll from right to left / Snow / Flash / Hold)

Switch/Port on the body

On/off, Brightness, Message Selection, USB Port (mini-5 pin)

Brightness Control

4 Levels (25%, 50%, 75%, 100%)

Power Supplying Method

Lithium-Polymer Battery Inside

Time for Full Charging

3~4 Hours

Lasting time by Full Charge

8~10 Hours at 25% Brightness

Charger Type

USB Adapter Enclosed

(100~220V AC Input, DC 5V / 400 mA Output )
